SENSOR, Ambient Temperature: Removal: Removal

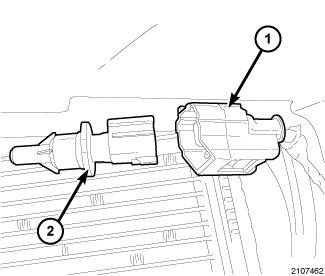

Fig 1: Identifying Ambient Temperature Sensor & Wire Harness Connector

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
2. Using a suitable tool, release the push pin type retainer that secures the ambient temperature sensor to the lower left side of the front bumper.
3. Disconnect the wire harness connector (1) from the ambient temperature sensor (2).
4. Remove the ambient temperature sensor from the vehicle.
