LAMP, Center High Mounted Stop: Removal: Removal

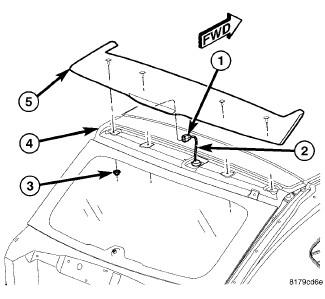

Fig 1: Connector, Satellite Wire, Nuts, Vehicle & Spoiler

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
2. Remove the rear spoiler Refer to LIFTGATE , Removal .
3. With spoiler on bench, remove the two screws to the CHMSL.
4. Remove CHMSL from spoiler.
