Rear

REAR

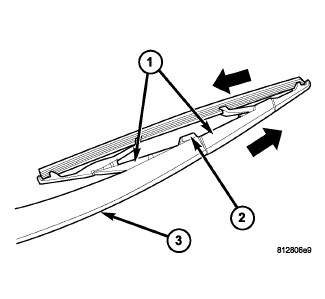

1. Lift the rear wiper arm (3) to raise the wiper blade (1) and element off of the liftgate glass.
2. To remove the wiper blade from the wiper arm, squeeze the two latch release tabs (2) together while pulling the blade straight out from the receptacle in the end of the arm.

CAUTION: Do not allow the wiper arm to spring back against the glass without the wiper blade in place or the glass and the wiper arm may be damaged.

3. Gently lower the tip of the wiper arm onto the glass.
