Front

FRONT





1. Lift the front wiper arm to its over-center position to hold the wiper blade off of the glass and relieve the spring tension on the wiper arm to wiper pivot shaft connection.
2. Remove the nut or nuts (2) that secure the front wiper arm (1) or links to the pivot shaft or shafts (3 and 4).

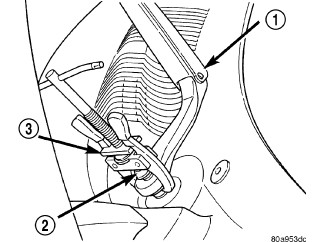

3. If necessary, use a suitable battery terminal puller (3) to disengage the front wiper arm (1) or links from the pivot shaft (2) or shafts.
4. Remove the wiper arm pivot end or links from the pivot shaft or shafts.
