Front

FRONT

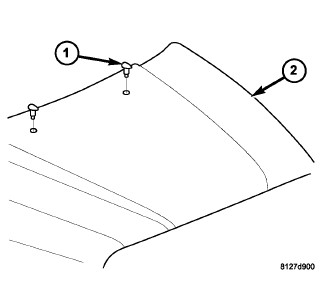

1. Position the front washer nozzle (1) near the mounting hole on the outside of the hood panel (2).
2. Reconnect the washer hose to the barbed nipple of the nozzle.
3. Insert the nozzle into the mounting hole.
4. Using hand pressure, push firmly and evenly on the top of the nozzle until the integral latches lock into place on the underside of the outer hood panel.
