Door Glass Channel - Installation

INSTALLATION

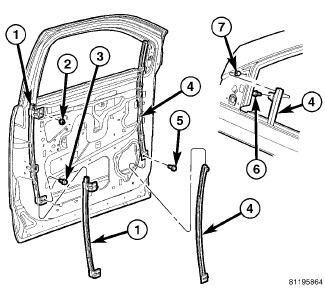

1. Install the front glass run channel (4) and install bolts 5 and 6. Tighten the bolts to 8 Nm (71 in. lbs.).
2. Install the rear glass run channel and the nut and bolt.
3. Tighten the fasteners to 8 Nm (71 in. lbs.).
4. Position the inner and outer belt molding onto the door and seat fully.





5. Install the side view mirror.
6. Install the nuts and connect the electrical connector.
7. Install the watershield. Front Door Water Shield - Installation.
