Quarter Glass - Removal

REMOVAL










1. Before proceeding with the following repair procedure, review all warnings and cautions Service Precautions.
2. Remove quarter panel trim Quarter Trim Panel - Removal.

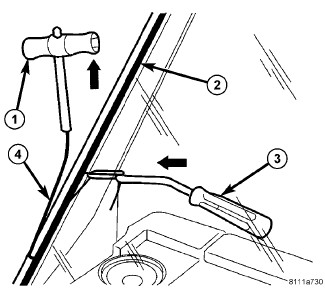

NOTE: Windshield removal shown, quarter glass similar.

3. Using a windshield cut-out wire (4) or other suitable tool, separate the adhesive (2).





4. Release the tabs (2) and the tabs on the alignment pin (4) and carefully remove the quarter glass.
