Heated Glass Element Relay: Locations







Window Defogger Relay is located in the Junction Block (JB).

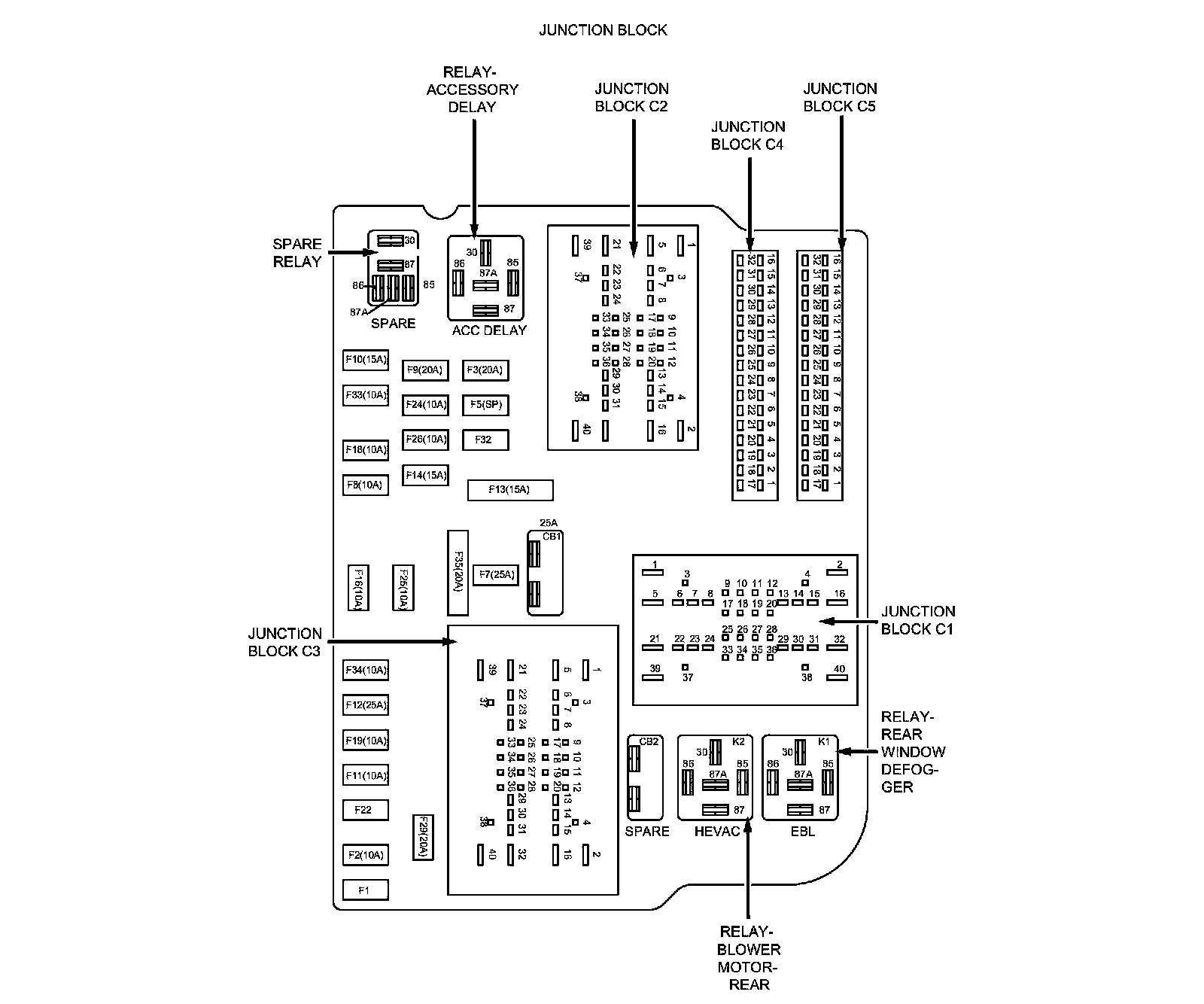

Junction Block:





Junction Block (JB) is concealed behind the left outboard end of the instrument panel cover.
