NV244 GENII Transfer Case - Removal

REMOVAL










1. Shift transfer case into AWD.
2. Raise vehicle.
3. Drain transfer case lubricant.
4. Mark front and rear propeller shafts for alignment reference.
5. Support transmission (1) with jack stand.
6. Remove the transfer case skid plate, if equipped.
7. Disconnect front and rear propeller shafts at transfer case.

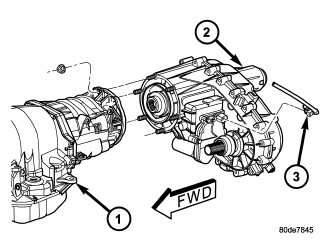

8. Disconnect transfer case shift motor and mode sensor wire connectors (3).
9. Disconnect transfer case vent hose.
10. Support transfer case (2) with transmission jack.
11. Secure transfer case (2) to jack with chains.
12. Remove nuts attaching transfer case to transmission.
13. Pull transfer case and jack rearward to disengage transfer case.
14. Remove transfer case (2) from under vehicle.
