NV140 Transfer Case - Removal

REMOVAL




NV140 DRAIN AND FILL PLUGS





1. Remove the fill plug (1) and drain plug (2). Drain the transfer case fluid into a suitable container.





2. Raise vehicle.

CAUTION: Do not allow propshafts to hang at attached end. Damage to joint can result.

3. Remove the front and rear propeller shafts.Drive Shaft - Removal
4. Support transmission with jack stand.
5. Remove rear crossmember and skid plate, if equipped.
6. Disconnect transfer case vent hose.
7. Disconnect the wiring connector from the shift motor, if necessary.
8. Support transfer case with transmission jack and secure with chains.

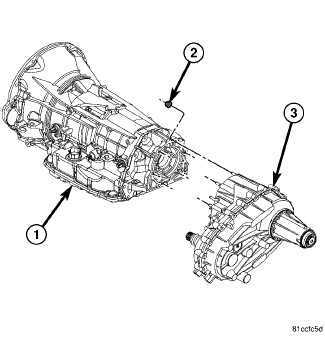

9. Remove nuts (2) attaching transfer case (3) to transmission (1).
10. Pull transfer case and jack rearward to disengage transfer case.
11. Remove transfer case from under vehicle.
