Front Output Shaft Seal - Removal

REMOVAL





1. Remove the front propeller shaft Drive Shaft - Removal.

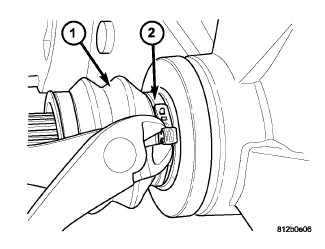

2. Remove the front propeller shaft seal boot (1) retaining clamp (2).

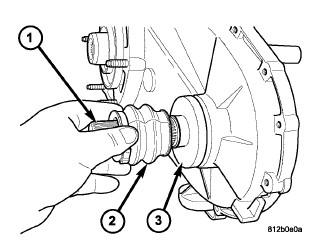

3. Remove the front propeller shaft seal boot (2) from the front output shaft seal slinger (3).

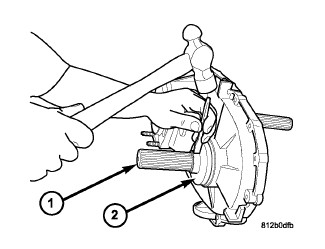

4. Using a suitable hammer and chisel, strike the seal slinger (2) with the chisel as shown in three, equally spaced locations.

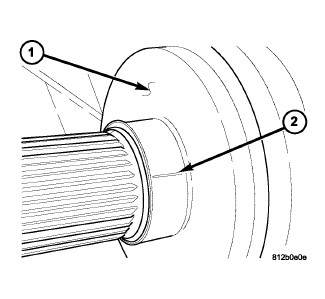

NOTE: The indentations (2) should appear as shown here.





5. Remove the seal slinger (1) from the front output shaft.

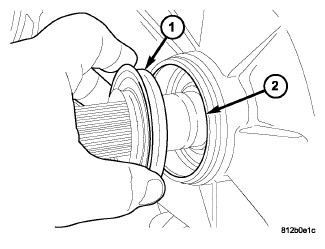

6. Remove the front output shaft seal slinger (1) from the output shaft (2).





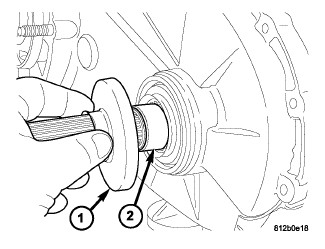

7. Using a suitable pry tool or a screw mounted in a slide hammer, remove the front output shaft seal (1) from the transfer case bore (2).
