Front Input Shaft Seal - Installation






INSTALLATION

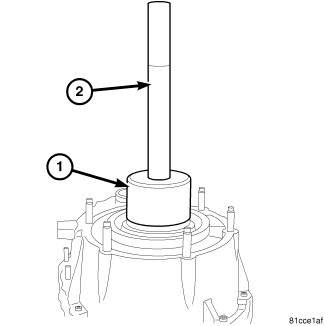

1. Using Installer 10118 (1) and Handle C-4171, install the front input shaft seal.
2. Install the transfer case into the vehicleNV244 GENII Transfer Case - Installation
3. Check the transfer case fluid level and correct as necessary. NV140 Transfer Case - Fluid Drain and Refill
