With Injected Rings

WITH INJECTED RINGS





1. Place shaft yoke in vise.

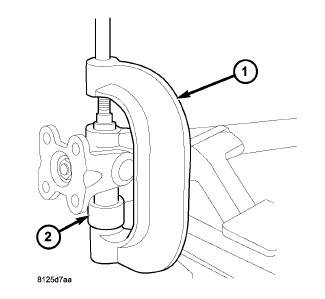

2. Position U-joint press (1) with receiver (2) on propeller shaft yoke.

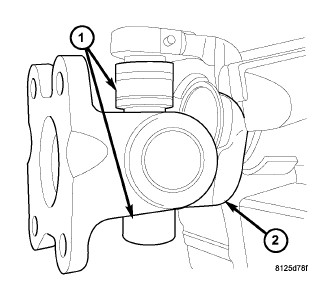

3. Pressed U-joint bearing caps (1) out of shaft yoke (2).





4. Remove lower bearing cap from shaft yoke.

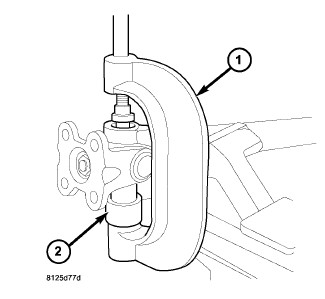

5. Turn shaft over and position press (1) with receiver (2) on shaft yoke.





6. Press remaining U-joint bearing cap out of shaft yoke.

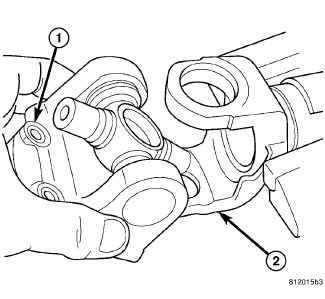

7. Remove flange (1) with U-joint out of shaft yoke (2).

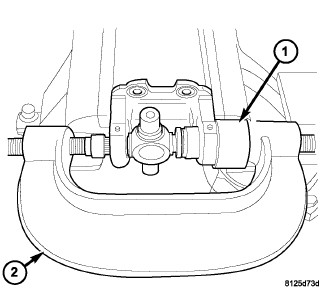

8. Position U-joint press (2) with receiver (1) on flange.

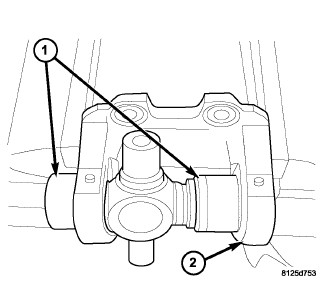

9. Press U-joint bearing caps (1) out of flange (2).





10. Remove bearing cap on the outside of the flange.

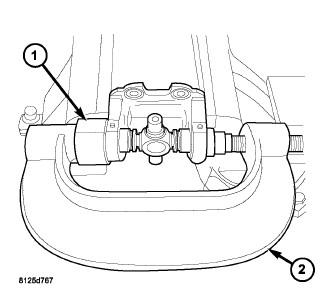

11. Position U-joint press (2) with receiver (1) on flange.
12. Press remaining U-joint bearing cap out of flange.
13. Remove U-joint from flange.
