With Snap Rings

WITH SNAP RINGS






NOTE: This procedure describes a propeller shaft equipped a cardan joint in the tube yoke. For propeller shafts equipped with a companion/slip yoke, repeat the steps to remove the remaining cardan joint.

1. Apply (EP) N.L.G.I. Grade 1 or 2 grease to inside of yoke bores.

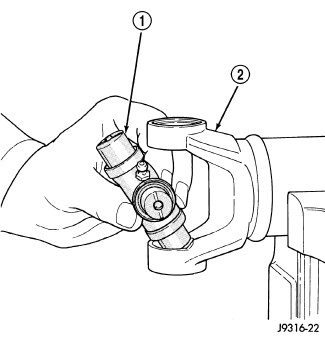

2. Position cross (1) in yoke with lube fitting pointing up, if equipped.

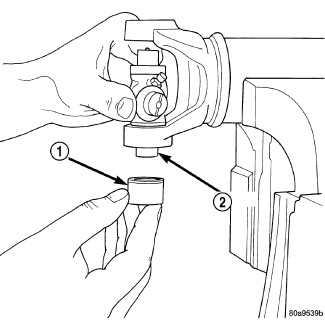

3. Place a bearing cap (1) over the cross end (2) and align cap with yoke bore.
4. Press bearing cap into the yoke bore enough to clear snap ring groove.
5. Repeat 3 and 4 to install the opposite bearing cap.

NOTE: If joint is stiff or binding, strike the yoke with a soft hammer to seat the needle bearings.

6. Add grease to lube fitting, if equipped.
