With Injected Rings

WITH INJECTED RINGS






NOTE: Replacement joint has internal snap rings.

1. Place joint in flange with one bearing cap.

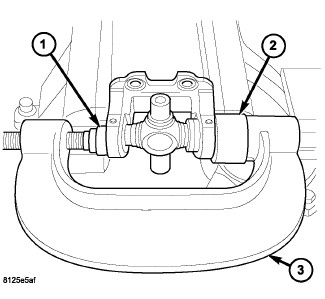

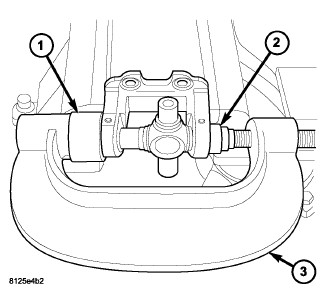

2. Position press (3) with receiver (1) on flange and bearing cap (2).

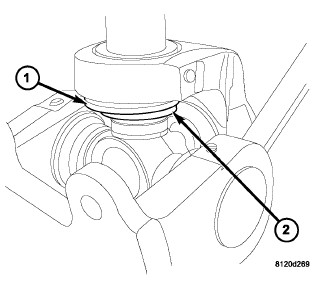

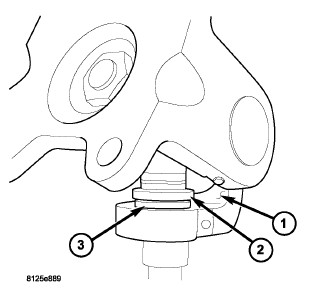

3. Press bearing cap until snap ring groove (1) is through the flange (2).

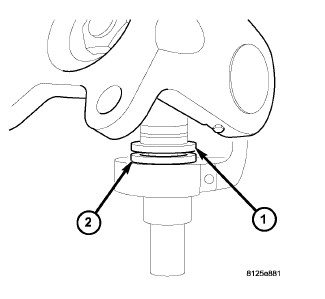

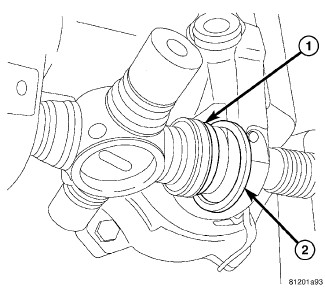

4. Install snap ring (2) on bearing (1).





5. Position press (3) with receiver (2) on remaining bearing cap (1) and flange.

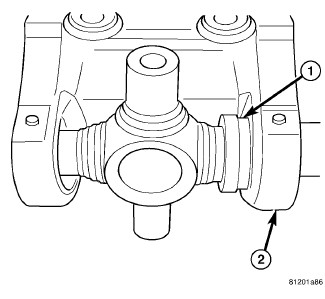

6. Press bearing cap until snap ring groove is through the flange.
7. Install snap ring (1) on bearing cap (2).

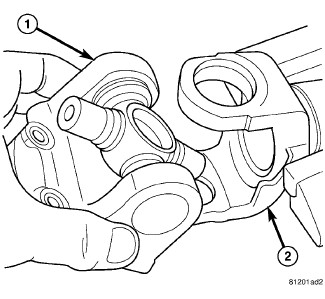

8. Install flange (1) with U-joint in yoke (2).

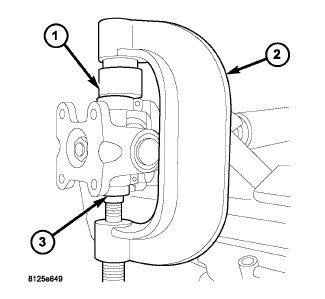

9. Position press (2) with receiver (1) and lower bearing cap (3) on yoke.





10. Press bearing cap until snap ring groove is through the yoke.

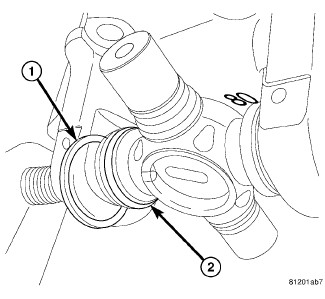

11. Install snap ring (2) on bearing cap (1).

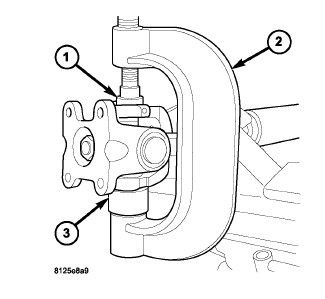

12. Position press (2) with receiver (3) on remaining bearing cap (1) and yoke.





13. Press remaining bearing cap until snap ring groove is through the yoke.
14. Install snap ring (2) on bearing cap (1).
