Rear






REMOVAL





1. With vehicle in neutral, position vehicle on hoist.

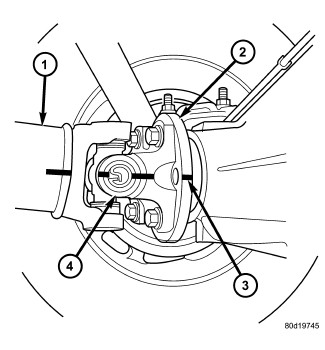

2. Mark a reference line (3) across the pinion flange (2) and propeller shaft (1) flange (4).

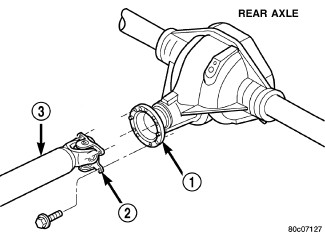

3. Remove pinion flange (1) bolts from propeller shaft flange (2).

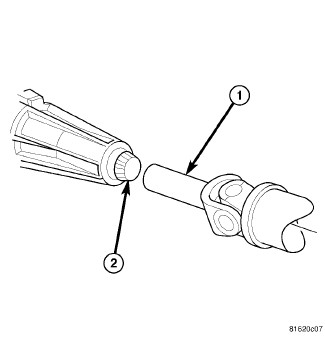

4. Slide propeller shaft back off automatic transmission/transfer case output shaft, then mark propeller shaft (1) and transmission/transfer case output shaft (2) for installation reference.
5. Remove propeller shaft from vehicle.

CAUTION: Failure to follow these instructions may result in a driveline vibration.
