Front






INSTALLATION





1. Slide propeller shaft (1) onto transfer case (4).
2. Install CV boot clamp (3).





3. Align propeller shaft (1) and pinion flange (2) reference marks (3).

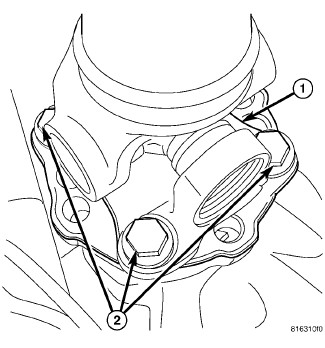

4. Install new propeller shaft flange bolts (2) and tighten to 115 Nm (85 ft. lbs.).

NOTE: Flange bolts incorporate a Loctite(R) patch, new bolts should be used. If bolts are not available, clean bolts and apply Mopar(R) Lock & Seal Adhesive or equivalent to the threads.

CAUTION: Failure to follow these instruction may result in a driveline vibration.

5. Install skid plate, if equipped.
