Half Shaft - Removal

REMOVAL





1. With vehicle in neutral, position vehicle on hoist.
2. Remove skid plate, if equipped.
3. Remove hub nut from the half shaft.

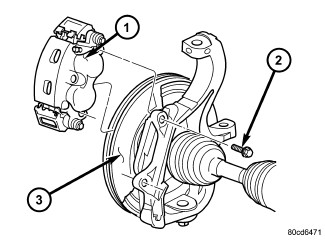

4. Remove brake caliper (1) and rotor (3).





5. Remove wheel speed sensor if equipped.

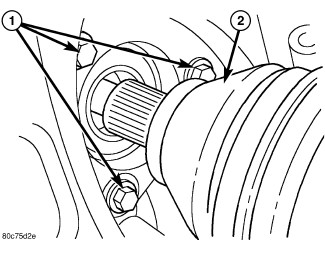

6. Remove hub bearing bolts (1) from the knuckle.





7. Remove hub bearing and brake shield from knuckle.
8. Support half shaft at the C/V joint housings.
9. Position two pry bars behind the inner C/V housing and disengage the C/V joint from the axle.

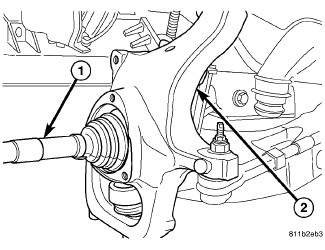

10. Remove half shaft (1) from vehicle.
