Drive Shaft, Inner Joint - Removal

REMOVAL





1. Place shaft in vise with soft jaws and support C/V joint.

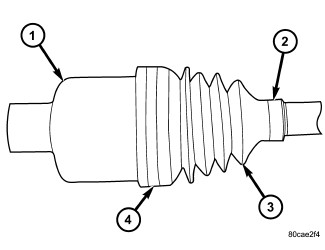

2. Remove clamps (2) (4) with a cut-off wheel or grinder.

NOTE: Do not damage C/V housing or half shaft with cut-off wheel or grinder.

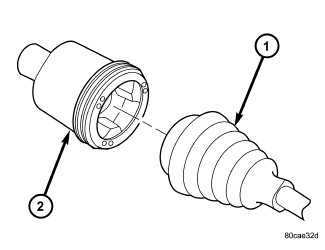

3. Remove housing (2) from the half shaft and slide boot (1) down shaft.





4. Remove housing bushing from the housing.

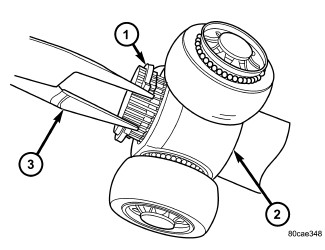

5. Remove tripod (2) snap ring (1).
6. Remove tripod and boot from the half shaft.
7. Clean and inspect C/V components for excessive wear and damage. Replace the tripod as a unit only if necessary.
