Installation

INSTALLATION





1. Lubricate bearing bore and seal lip with gear lubricant.

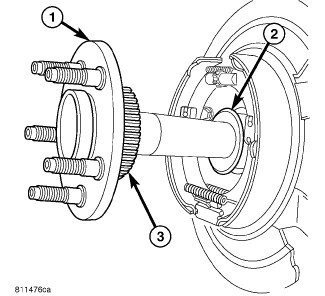

2. Insert axle shaft (1) through seal (2) and engage into side gear splines.

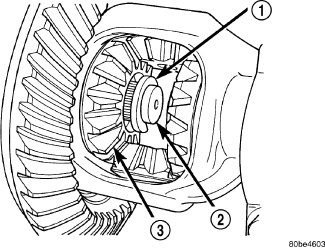

3. Insert C-lock (1) in end of axle shaft (2) then push axle shaft outward to seat C-lock in side gear (3).

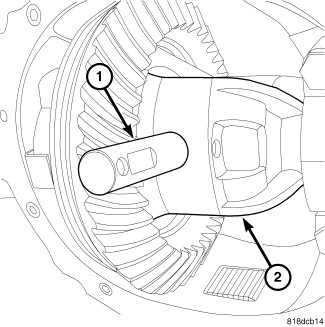

4. Insert pinion mate shaft (1) into differential case (2) and pinions gears.

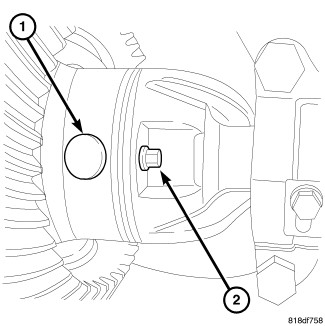

5. Align hole in mate shaft (1) with hole in differential case. Install lock screw (2) with Loctite(R) on the threads. Tighten lock screw to 25 Nm (220 in. lbs.).
6. Install differential cover and fill with gear lubricant.
7. Install brake rotor and caliper adapter with caliper.
8. Install wheel speed sensors.
