Removal

REMOVAL





1. Remove half shaft from vehicle.
2. Clean axle seal area.
3. Remove snap ring and O-ring from the axle shaft.

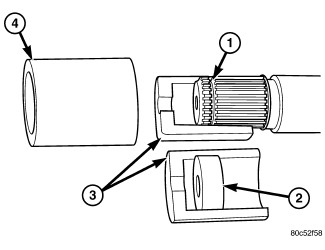

4. Remove axle (1) with Remover 8420A (2) (3) (4) and Slide Hammer C-3752.
