Installation

INSTALLATION





1. Lubricate bearing bore and seal lip with gear lubricant.
2. Install axle shaft and engage shaft into side gear. Push firmly on axle shaft to engage snap-ring.

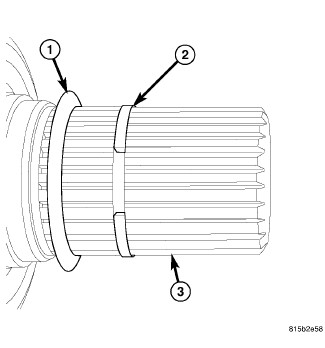

3. Install O-ring (1) and snap-ring (2) on shaft (3).
4. Check the differential fluid level and add fluid if necessary.
5. Install half shaft.
6. Install skid plate, if necessary.
