Removal

REMOVAL





1. Remove axle shaft.
2. Remove axle seal with pry bar.

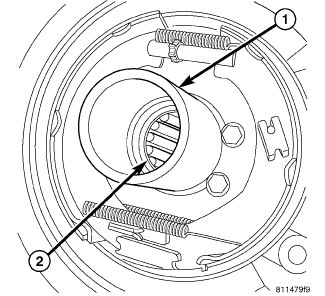

3. Position bearing Receiver 9338 (1) on axle tube.

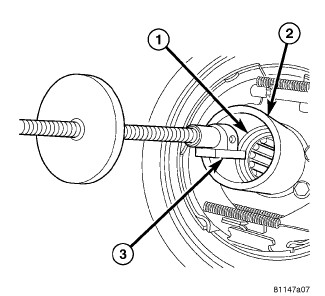

4. Insert bearing Remover 6310 with Foot 6310-9 (3) through receiver (2) and bearing (1).





5. Tighten nut (1) to pull bearing into the receiver (3).
