Installation

INSTALLATION





1. Remove any old sealer/burrs from axle tube.

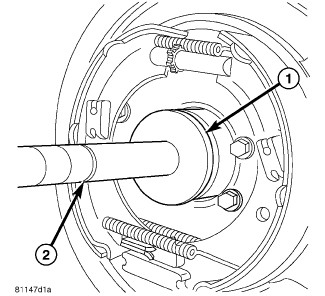

2. Install axle shaft bearing with Installer 9337 (1) and Handle C-4171 (2). Drive bearing in until tool contacts the axle tube.

NOTE: Bearing is installed with the bearing part number against the installer.

3. Coat new axle seal lip with axle lubricant and install with Installer 9337 and Handle C-4171.
4. Install axle shaft.
