Removal

REMOVAL





1. Remove half shaft, axle shaft and seal.

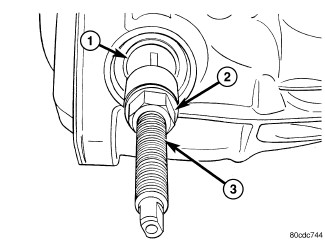

2. Install axle shaft bearing Remover C-4660-A (3) in the bearing (1). Then tighten the nut (2) to spread the remover in the bearing.

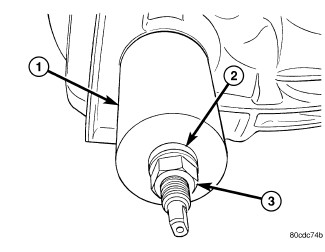

3. Install bearing remove cup (1) bearing (2) and nut (3). Tighten nut to draw bearing out.
4. Inspect axle shaft tube bore for roughness and burrs.
