Installation
INSTALLATION
1. Wipe the axle shaft tube bore clean.

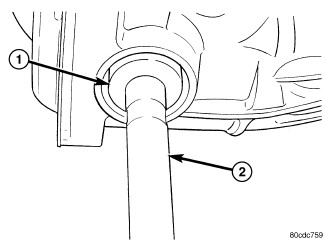

2. Install axle shaft bearing with Installer 5063 (1) and Handle C-4171 (2).
3. Install new axle shaft seal with Installer 8402 (1).
4. Install axle shaft and half shaft.
INSTALLATION
1. Wipe the axle shaft tube bore clean.
2. Install axle shaft bearing with Installer 5063 (1) and Handle C-4171 (2).
3. Install new axle shaft seal with Installer 8402 (1).
4. Install axle shaft and half shaft.
