Differential Carrier Bearings - Removal






REMOVAL

1. Remove differential case from axle housing.

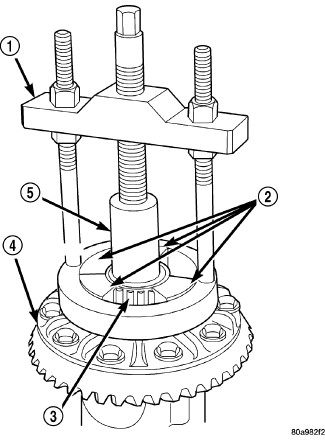

2. Remove differential bearings from the case with Puller/Press C-293-PA (1) Adapters C-293-47 (2) and Plug C-293-3 (5).
