Differential Carrier Bearings - Removal






REMOVAL





1. Remove differential from housing.

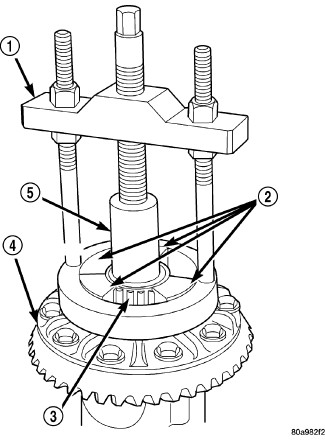

2. Remove bearings (3) from differential case (4) with Puller C-293-PA (1) Adapters C-293-48 (2) and Plug C-293-3 (5).
