Differential Carrier Bearings - Installation

INSTALLATION

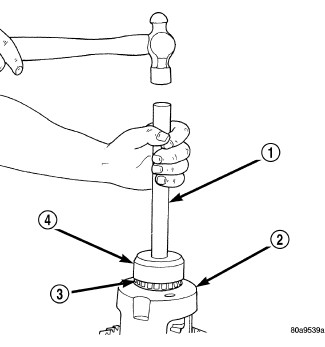

1. Install differential case bearings (3) with Installer C-3716-A (4) and Handle C-4171 (1).
2. Install differential in axle housing.
