Differential Carrier - Disassembly

DISASSEMBLY

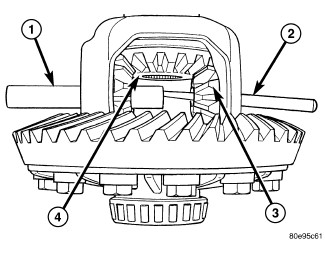

1. Remove pinion mate shaft lock roll pin and remove pinion mate shaft (1) with a punch (2) from pinion gears (3).

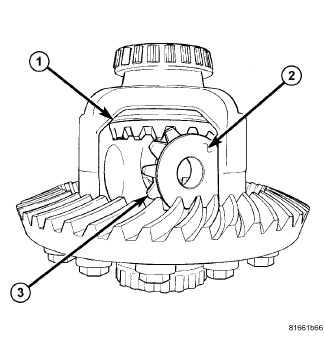

2. Rotate one pinion gear (2) with thrust washer (3) to the differential window (1) and remove gear and thrust washer.

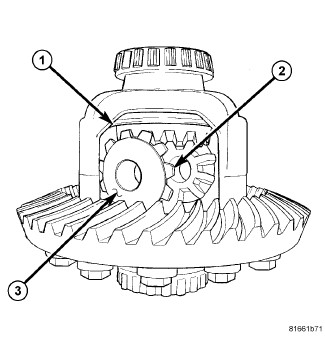

3. Rotate remaining pinion gear (3) with thrust washer (2) to the differential window (1) and remove gear and washer.

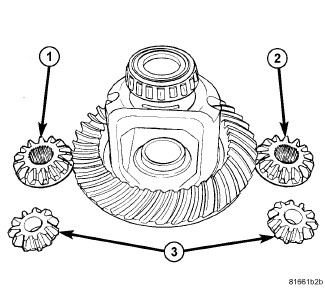

4. Remove differential side gears (1, 2) and thrust washers.
