Axle Shaft Seal - Removal






REMOVAL





1. Remove axle shaft.

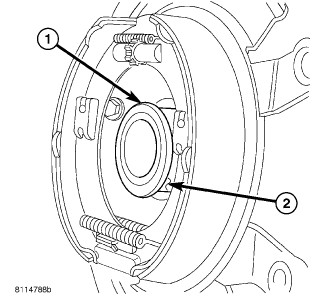

2. Remove axle shaft seal (1) from end of the axle tube (2) with a pry bar.
