Axle Shaft Seal - Installation

INSTALLATION





1. Remove any old sealer/burrs from axle tube.

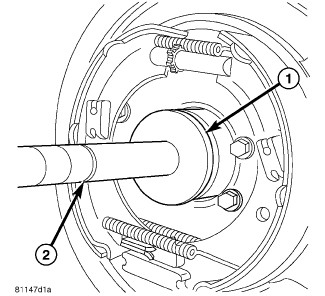

2. Coat new seal lip with axle lubricant and install seal with Installer 9337 (1) and Handle C-4171 (2).
3. Install axle shaft.
