Axle Shaft Seal - Installation






INSTALLATION





1. Wipe axle shaft tube bore clean.

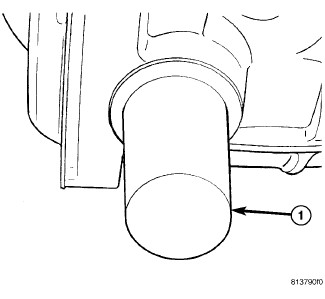

2. Install new axle shaft seal with Installer 8402 (1).
3. Install axle shaft and half shaft.
