Removal






REMOVAL

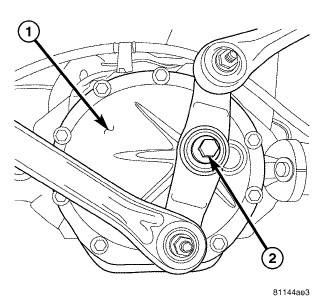

1. Remove watts link bell crank bolt (2) from differential cover (1).
2. Remove differential cover bolts.
3. Remove cover and drain fluid.
