Transmission Solenoid and TRS Assembly - Removal






REMOVAL

NOTE: If the Transmission Solenoid/TRS Assembly is being replaced, the Quick Learn Procedure must be performed. Quick Learn Procedure









1. Remove the valve body from the transmission.Valve Body - Removal

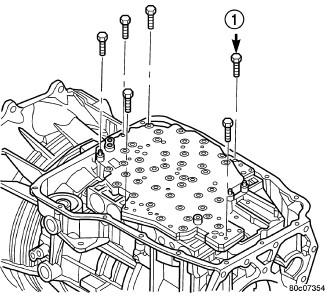

2. Remove the bolts (1) holding the transmission solenoid/TRS assembly onto the valve body.
3. Separate the transmission solenoid/TRS assembly from the valve body.
