Adapter Housing Seal - Installation

INSTALLATION










1. Clean the adapter seal bore in the adapter housing of any residue or particles remaining from the original seal.

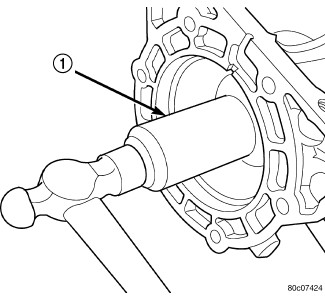

2. Install new oil seal in the adapter housing using Seal Installer C-3860-A (1). A properly installed seal is flush to the face of the seal bore.
3. Install the transfer case onto the transmission.
