Holding Clutch - Description

DESCRIPTION

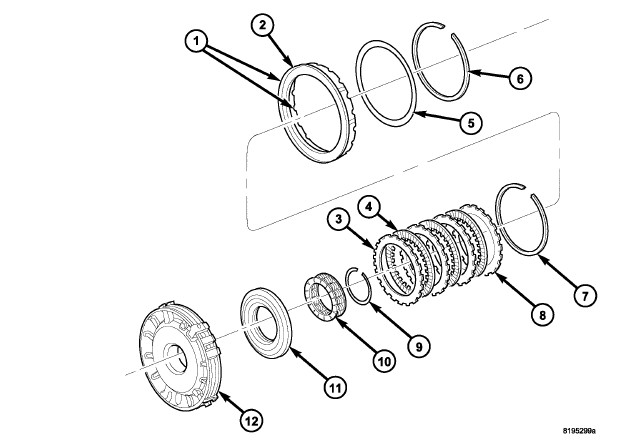

Three hydraulically applied multi-disc clutches are used to hold some planetary gear train components stationary while the input clutches drive others. The 2C, 4C, and Low/Reverse clutches are considered holding clutches. The 2C and 4C clutches are located in the 4C retainer/bulkhead (12).

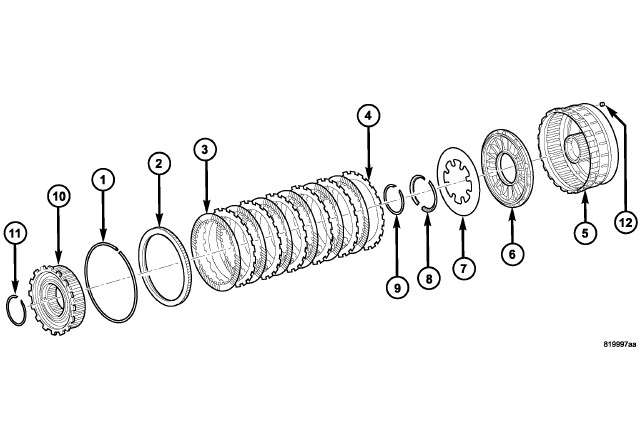

The Low/Reverse clutch is located at the rear of the transmission case.
