Front

FRONT





1. Raise and support the vehicle.
2. Remove the wheel and tire assembly.
3. Remove the brake caliper, caliper adapter and rotor, Brake Rotor - Removal.
4. Remove the wheel speed sensor from the hub.

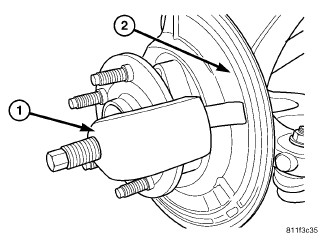

5. Press the stud from the hub using remover C-4150A (1).

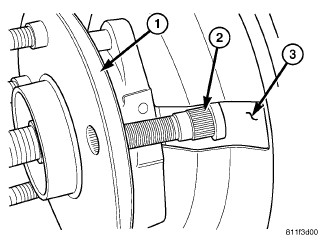

6. Remove the stud (2) from the hub (1) through the backing plate access hole (3).
