Front Suspension Torsion Bar Crossmember Bushing - Installation

TORSION BAR CROSS MEMBER BUSHING






NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

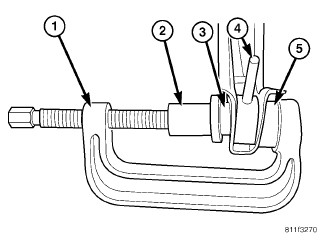

1. Install the new bushing (3) into the cross member using special tools C4212-F (Press)(1), 9335-3(Driver)(2), 9335-4 (Spacer)(4) and 9335-1 (Depth setting cup)(5) making sure to properly orient the bushing.
2. Remove the cross member from the vise.
3. Install the torsion bar cross member.
4. Reset the vehicle ride height Service and Repair.
5. Perform a wheel alignment Service and Repair.
