Rear Suspension Coil Spring(s) - Installation

INSTALLATION






NOTE: All torques should be made with the full vehicle weight on the ground being supported by the tires.

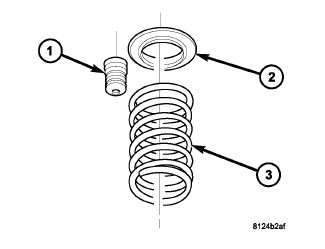

1. Position spring (3) to the vehicle on top of the isolator (2).
2. Align the springs (3) to the spring pockets.
3. Raise the rear axle into place.





4. Install the bell crank bolt (4) to the rear axle. Tighten to 251 Nm (185 ft. lbs.).
5. Install the lower shock bolts to the rear axle. Tighten to 102 Nm (75 ft. lbs.).
6. Remove the holding fixture for the rear axle.
