Rear Suspension Stabilizer Bar Link - Removal

REMOVAL





1. Raise and support the vehicle.
2. Remove the rear tire.
3. Support the rear axle with a jack.
4. Remove the fuel tank skid plate Skid Plate - Removal. This step must be done for replacement of the left side stabilizer link.

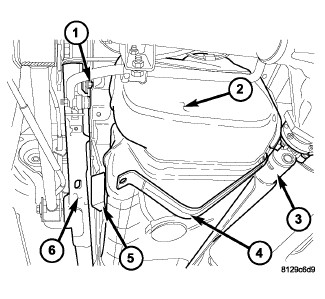

5. Remove the rear fuel tank strap bolt and let the strap (4) hang. This step must be done for replacement of the left side stabilizer link.
6. Push the fuel tank (2) over towards the drive shaft (3) and install a block of wood (5) between the frame (6) and the fuel tank (2) to allow for clearance of the upper stabilizer link bolt (1). This step must be done for replacement of the left side stabilizer link.

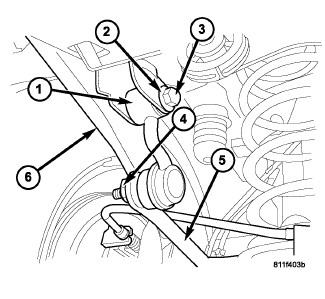

7. Remove the upper link nut (2) and bolt (3) at the frame.
8. Remove the lower link nut (4) at the stabilizer bar (5).
9. Remove stabilizer link (1).
