Rear Suspension Stabilizer Bar Link - Installation

INSTALLATION





1. Install the upper bolt (1) and nut (1) for the stabilizer link to the frame and tighten to 102 Nm (75 ft. lbs.).
2. Remove the block of wood (5) between the frame (6) and fuel tank (2). If replacement of left stabilizer link was performed.
3. Install the rear fuel tank strap (4). If replacement of left stabilizer link was performed.
4. Install the fuel tank skid plate Skid Plate - Installation. If replacement of left stabilizer link was performed.

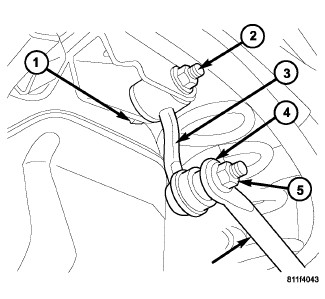

5. Install the stabilizer link (3) to the stabilizer bar (4).
6. Install the nut (5) and tighten to 102 Nm (75 ft. lbs.).
7. Remove the jack and lower the vehicle.
