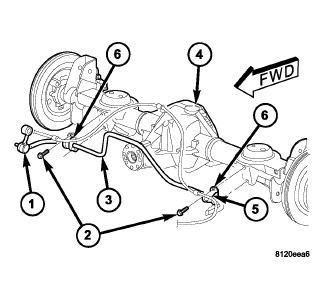

Rear Suspension Stabilizer Bar - Removal

REMOVAL





1. Raise and support vehicle.
2. Remove lower links mounting nuts (1).
3. Remove stabilizer bar retainer bolts (2) and retainers (6) at the axle (4).
4. Remove the park brake cable bracket from the retainers.
5. Remove stabilizer bar (3) and remove bushings (5).
