Crossmember - Removal
REMOVAL
1.
Raise and support the vehicle.
2.

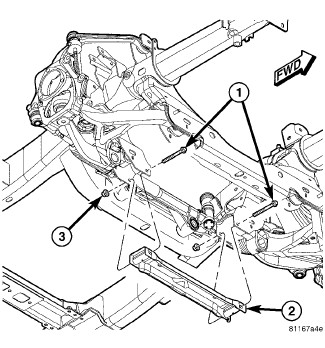

Remove the bolts (1) and nuts (3) and remove the crossmember (2).
