Rear Lower Control Arm - Installation






INSTALLATION

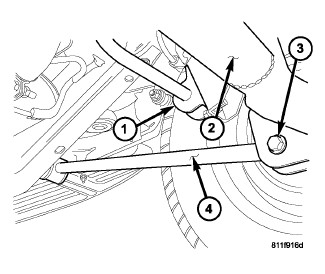

1. Install the lower control arm (4) to the vehicle.
2. Install the lower control arm bolt (1) and flag nut (3) at the frame (2).





3. Install the lower control arm bolt (3) and flag nut at the axle (2).
4. Lower the vehicle to the ground and then tighten the bolts to 244 Nm (180 ft.lbs.).
