Front Upper Control Arm - Installation

INSTALLATION

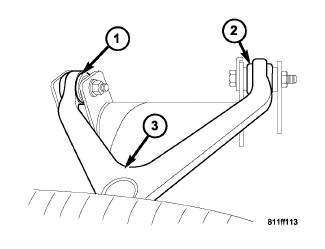

1. Position the control arm (3) into the frame brackets (1AND2). Install bolts and tighten to 102 Nm (75 ft. lbs.).

2. Insert ball joint in steering knuckle and tighten ball joint nut to 75 Nm (55 ft. lbs.).
3. Install the wheel and tire assembly,Removal and Replacement.
4. Remove the support and lower vehicle.
5. Perform a wheel alignment, Service and Repair.
