Front Lower Control Arm Bushings - Installation

LOWER CONTROL ARM BUSHINGS

LARGE BUSHING FRONT PART OF THE CONTROL ARM





NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

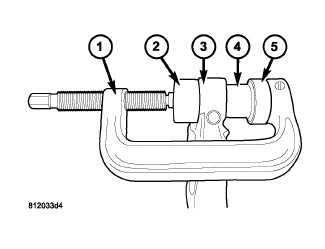

1. Install the new bushing (4) into the control arm (3) using special tools C4212-F (Press)(1), 9334-3 (Bushing installation depth spacer)(2), 9334-1 (driver)(5) as shown.

SMALL BUSHING TORSION BAR SIDE

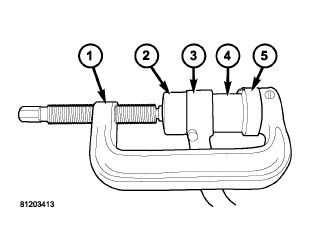

1. Install the new bushing (4) into the lower control arm (3) using tools C4212-F (Press)(1), 9334-3 (Bushing installation depth spacer), 9334-2 (Driver) as shown.
2. Remove the control arm from the vise.
3. Install the lower control arm Front Lower Control Arm - Installation.
4. Reset the vehicle ride height Service and Repair.
5. Perform a wheel alignment Service and Repair.
