Front Suspension Lower Ball Joint - Removal

REMOVAL





1. Remove the tire and wheel assembly.
2. Remove the brake caliper and rotor Brake Rotor - Removal.
3. Disconnect the tie rod (2) from the steering knuckle using puller 8677 (1)Tie Rod End - Removal.





4. Separate the lower ball joint from the steering knuckle (1) using puller 8677 (2).
5. Remove the steering knuckle Front Steering Knuckle - Removal.
6. Move the half shaft to the side and support the half shaft out of the way 4X4 only.
7. Chisel out the ball joint stakes.






NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

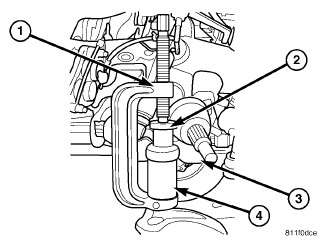

8. Press the ball joint from the lower control arm (3) using special tools C-4212F (PRESS) (1), 9333-1 (Driver) (2) and 9333-2 (Receiver) (4).
