Inner Tie Rod End

INNER TIE ROD END





1. Remove the outer tie rod end (1) Count the number of turns when removing, this will aid in setting the toe after installation.Tie Rod End - Removal.
2. Remove the jam nut (3).

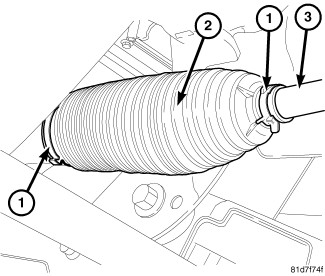

3. Remove the clamps (1) for the inner tie rod boot (2).
4. Remove the boot (2).

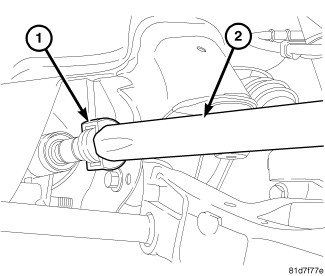

5. Install the special tool # 10087-3 socket (1) and # 10087-2 Tube (2) and remove the inner tie rod end.
