Inner Tie Rod End

INNER TIE ROD END





1. Thread the inner tie rod to the rack and pinion.
2. Tighten the inner tie rod end using special tool # 10087-3 socket (1) and # 10087-2 tube (2) to 169 Nm (125 ft.lbs.).





3. Install the inner tie rod end boot (2) and reclamp (1) to the tie rod (3) and rack.

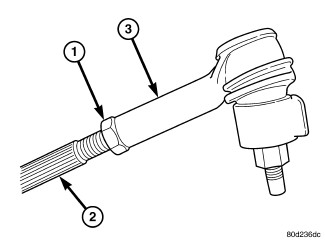

4. Install the jam nut (1) to the inner tie rod end (2).
5. Install the outer tie rod (3) the same number of turns when removed Tie Rod End - Installation.
6. Install the front wheels.
7. Lower the vehicle.
8. Perform toe adjustment.
9. Tighten the jam nut (1) after toe adjustment. Tighten to 50 Nm (37 ft. lbs.).
